MATK-817 Portable Handheld Differential Air Pressure Manometer 15.000psi Gauge Meter HVAC Tester

0 Reviews
Out of stock
MATK-817
This high quality Professional Digital Manometer that measures Gauge Pressure-a measure of pressure with reference to ambient pressure, and Differential Pressure-a measure of the difference between...
$105.90 USD
Share on:
This high quality Professional Digital Manometer that measures Gauge Pressure-a measure of pressure with reference to ambient pressure, and Differential Pressure-a measure of the difference between two pressures.

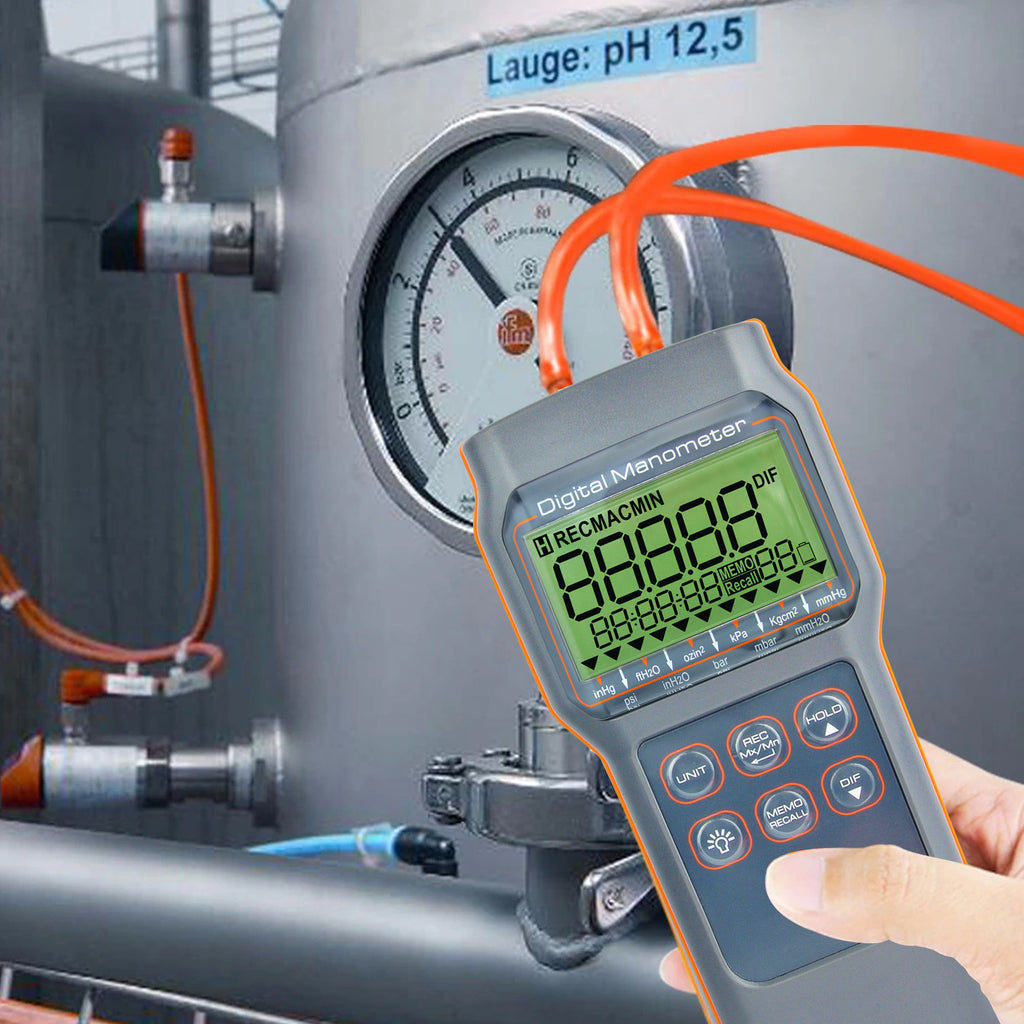

    This Manometer is ideal for HVAC/R technicians measuring pressure level, Medical equipment, Computer Peripherals, Pneumatic controls.


    Features:
    1. 11 measuring units: bar, oz in2, psi, kPa, inHg, mbar, mmHg, kgcm2, inH2O, ftH2O, mmH2O
    2. Highly accurate measurements

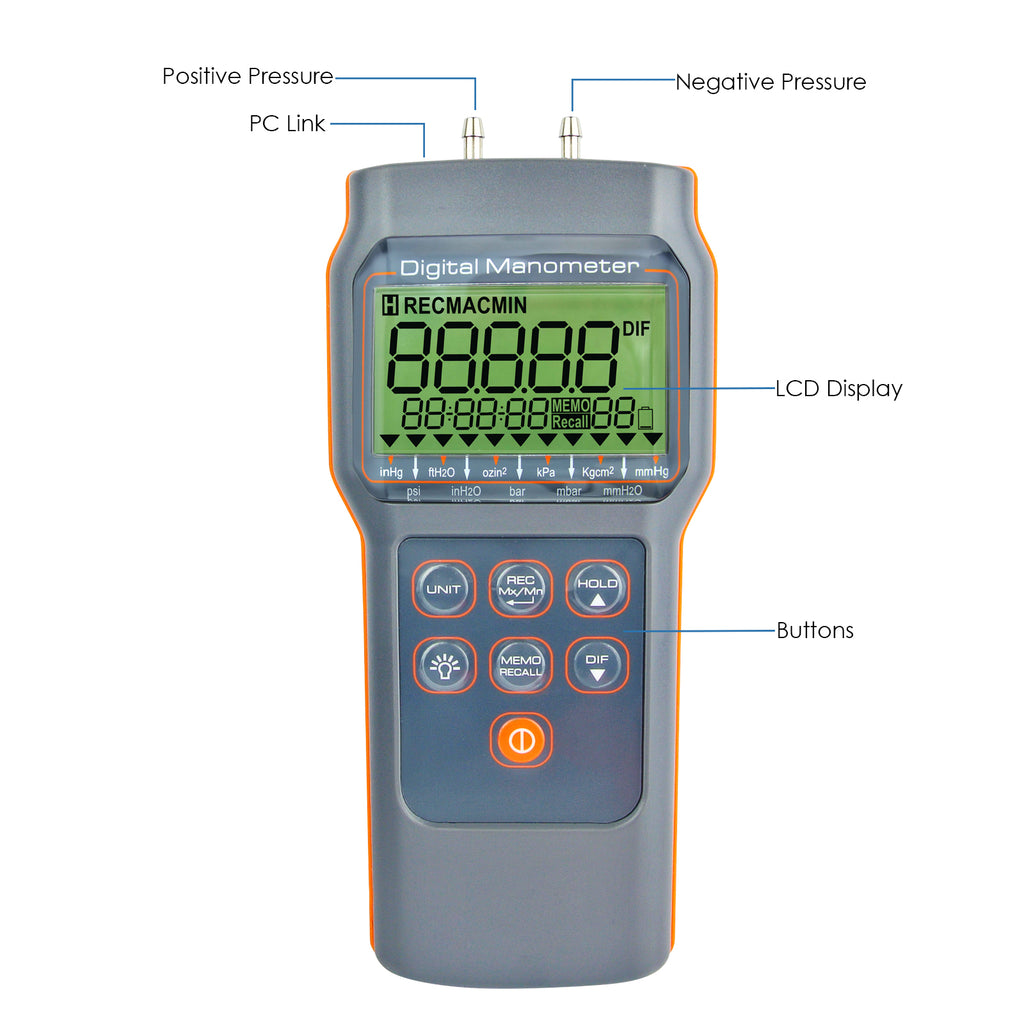

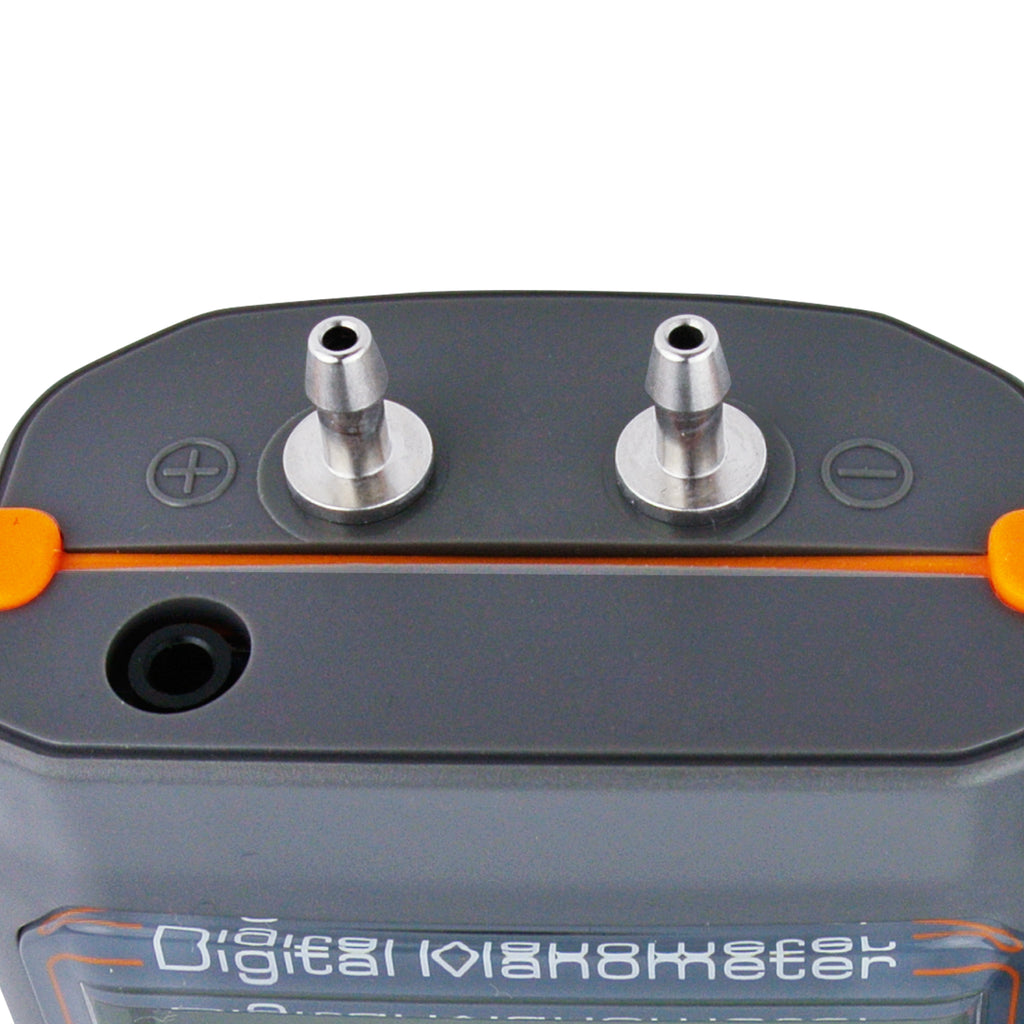

    3. Available 4mm negative and positive metal hose plug
    4. Hold function
    5. Min, Max, Record Features
    6. Over-range indication with error message
    7. Display pressure change from baseline
    8. Blue backlight function
    9. Auto power off
    10. Accumulative time shows in recording period
    11. PC interface available for real-time download
    12. Low battery indicator

    Specifications:
    • Range and Resolution:
      • psi: ±15.000 ; 0.001
      • kPa: ±103.42 ; 0 .01
      • mmHg: ±775.7 ;  0.1
      • Kg/cm2: ±1.055 ; 0.001
      • mbar(hpa): ±1034.2 ; 0.1
      • bar: ±1.034 ;0.001
      • in H2O: ±415.20 ; 0.01
      • mmH2O: ±10546 ; 1
      • in Hg: ±30.5 ; 0.001
      • ft H2O: ±34.6 ;  0.001
      • oz/inch2: ±240.00 ; 0.01
    • Accuracy: ±0.3% of full scale at 25°
      • Repeatability:  ±0.2% ~ 0.5% of full scale
      • Linearity / Hysteresis: ±0.29% ~ 1% of full scale
      • Combined Accuracy: ±1.0% of full scale
    • Response Time: 0.5 second

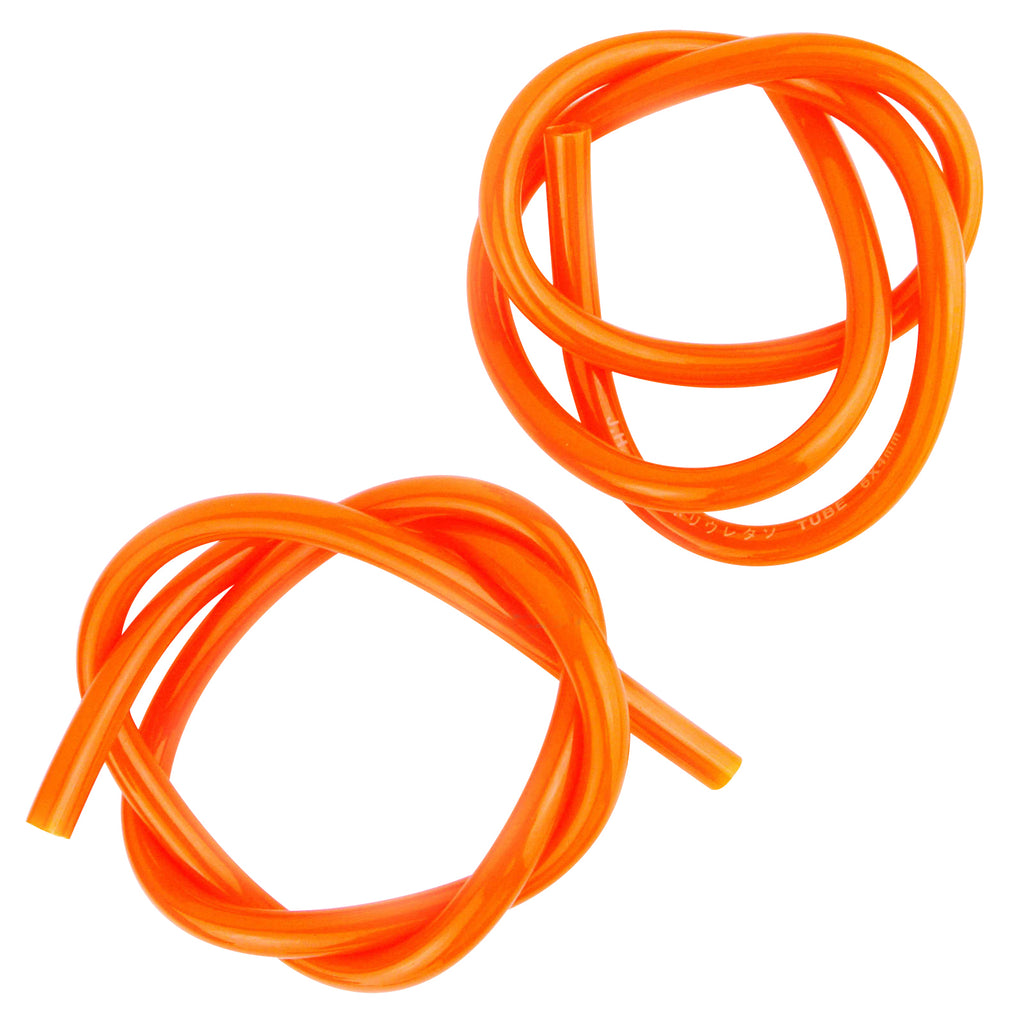

    • Lug & Tubing : 4mm lug-orange tube 500mm long (included in set)
    • Compensated temp. range:10 ~ 30 °C
    • LCD size: 32.5 x 54mm
    • Operating Temp: 0  ~  50 °C
    • Operating RH: Humidity <80%
    • Storage Temp: -20 ~ 50 °C
    • Storage RH: Humidity <90%

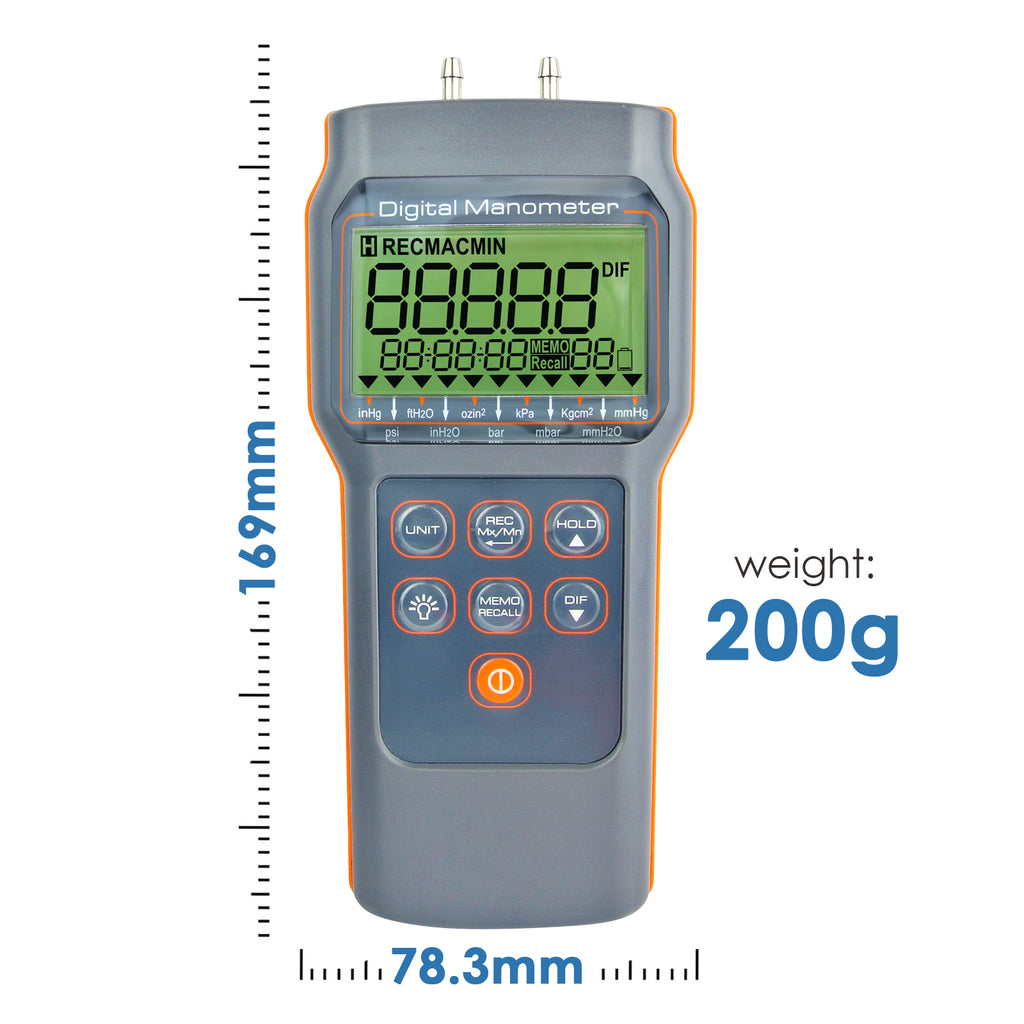

    • Dimension: 169 x 78.3 x 34.4
    • Weight: ~200g

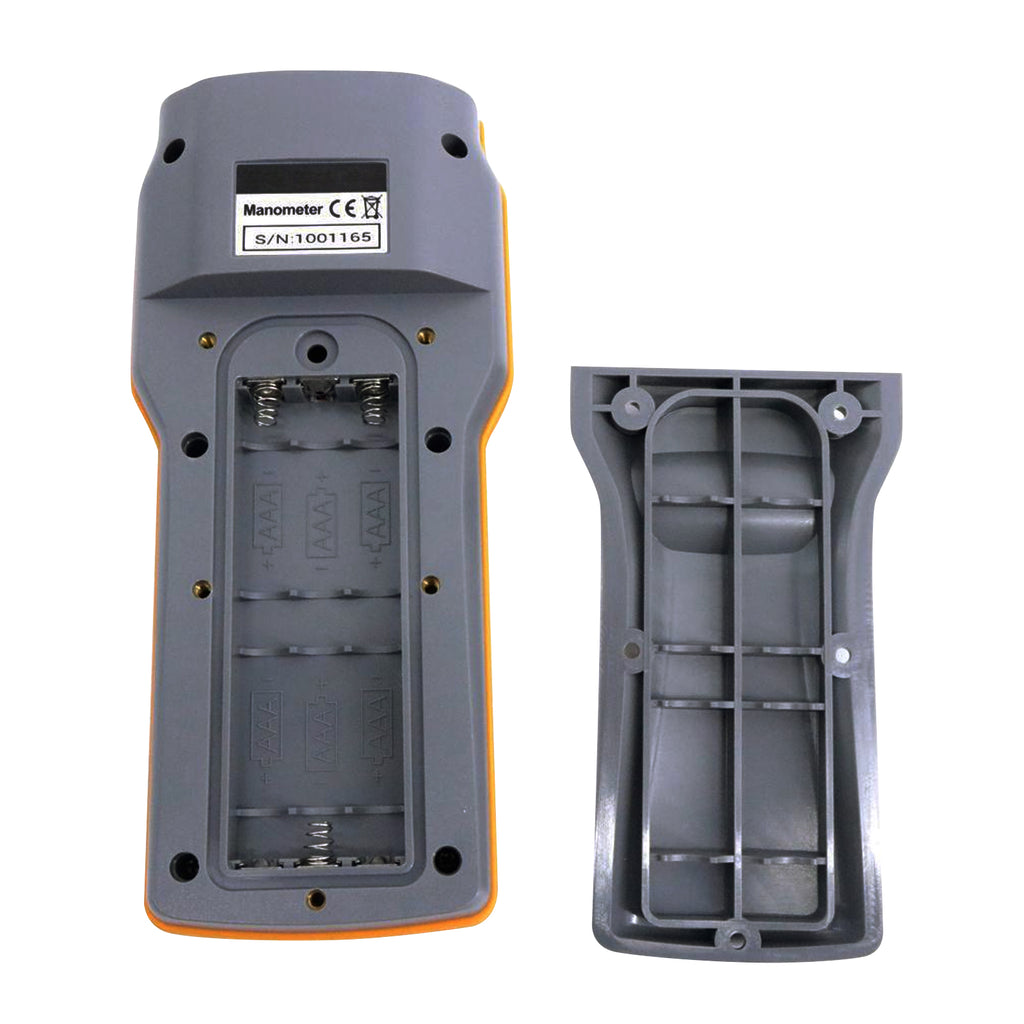

    • Battery: 6 x AAA batteries

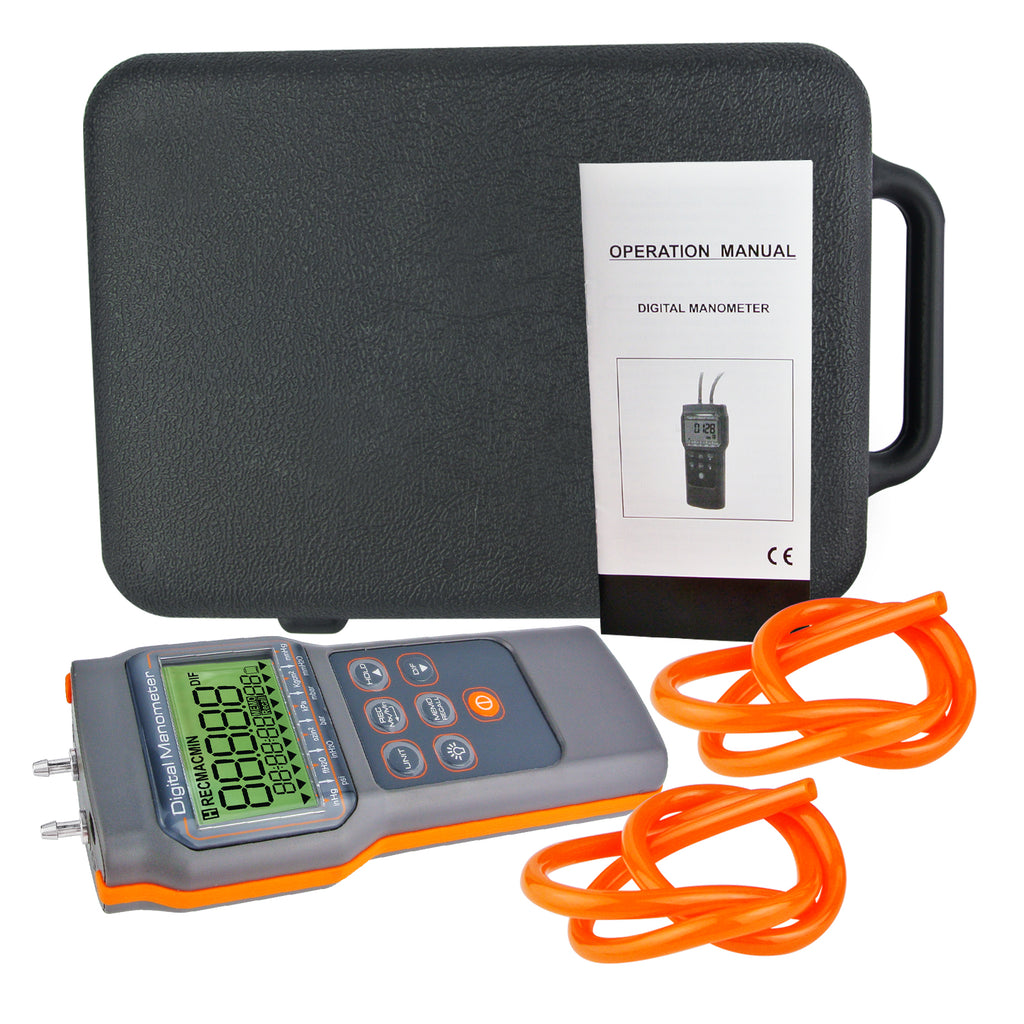

    Set Includes:
    • 1 x Economic Digital Manometer
    • 6 x AAA Battery
    • 1 x English Instruction Manual
    • 2 x Connection Hose

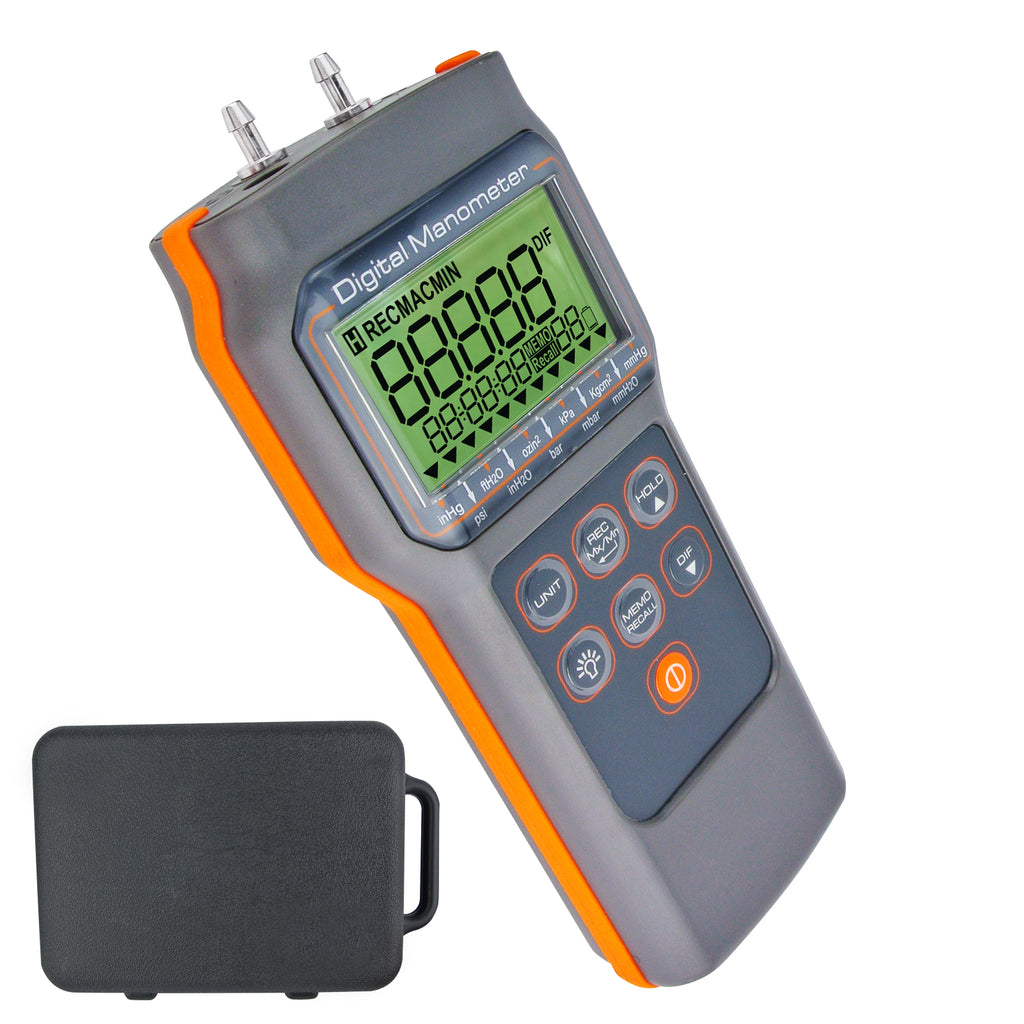

    • 1 x Hard carry case
