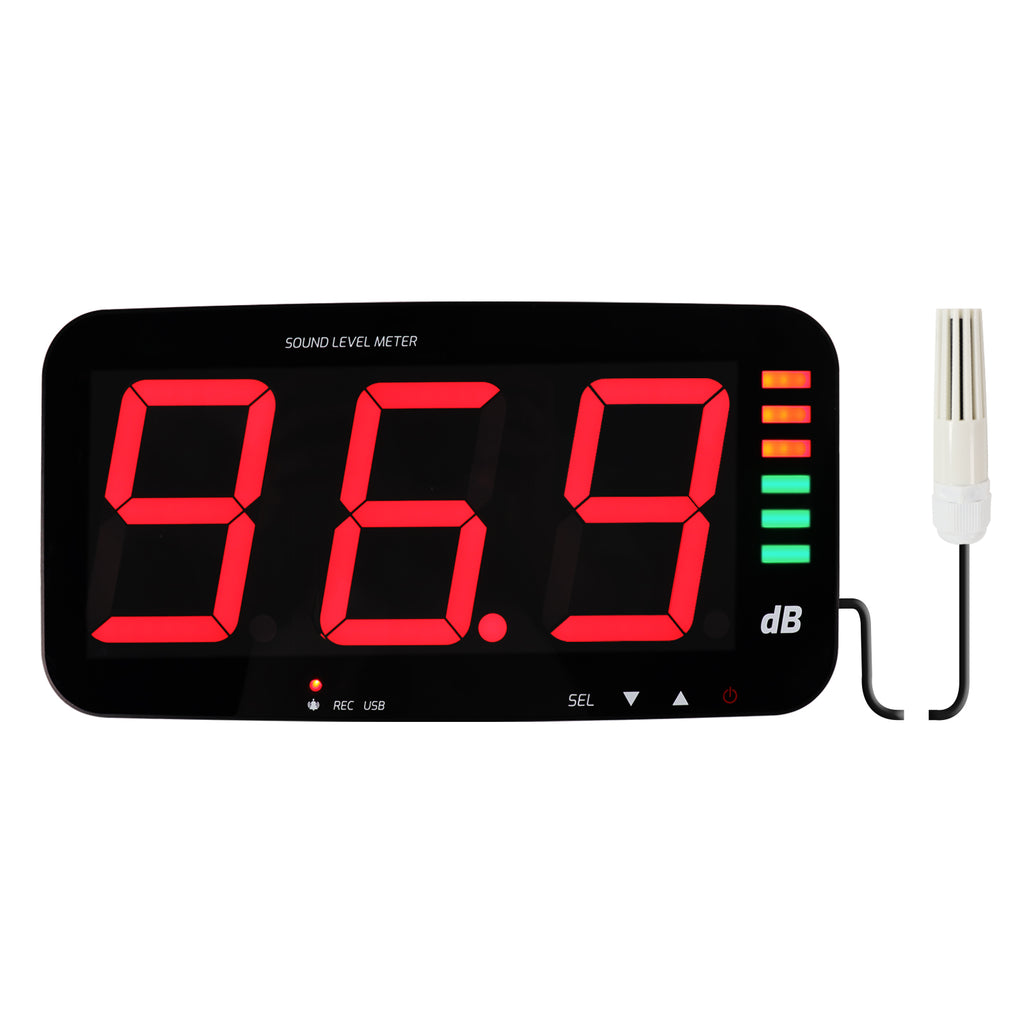

TK389PLUS 13-inch Digital Wall Hanging Sound Level Meter Datalogger Audio and Visual Alarm Large HD Display

In stock
TK389PLUS
Features: 13" HD wide-screen display Wide measurement range with data logging Adjustable alarm threshold Sound and light alarm when over limit (built-in buzzer) Adjustable alarm duration With an ...
$147.90 USD
Share on:

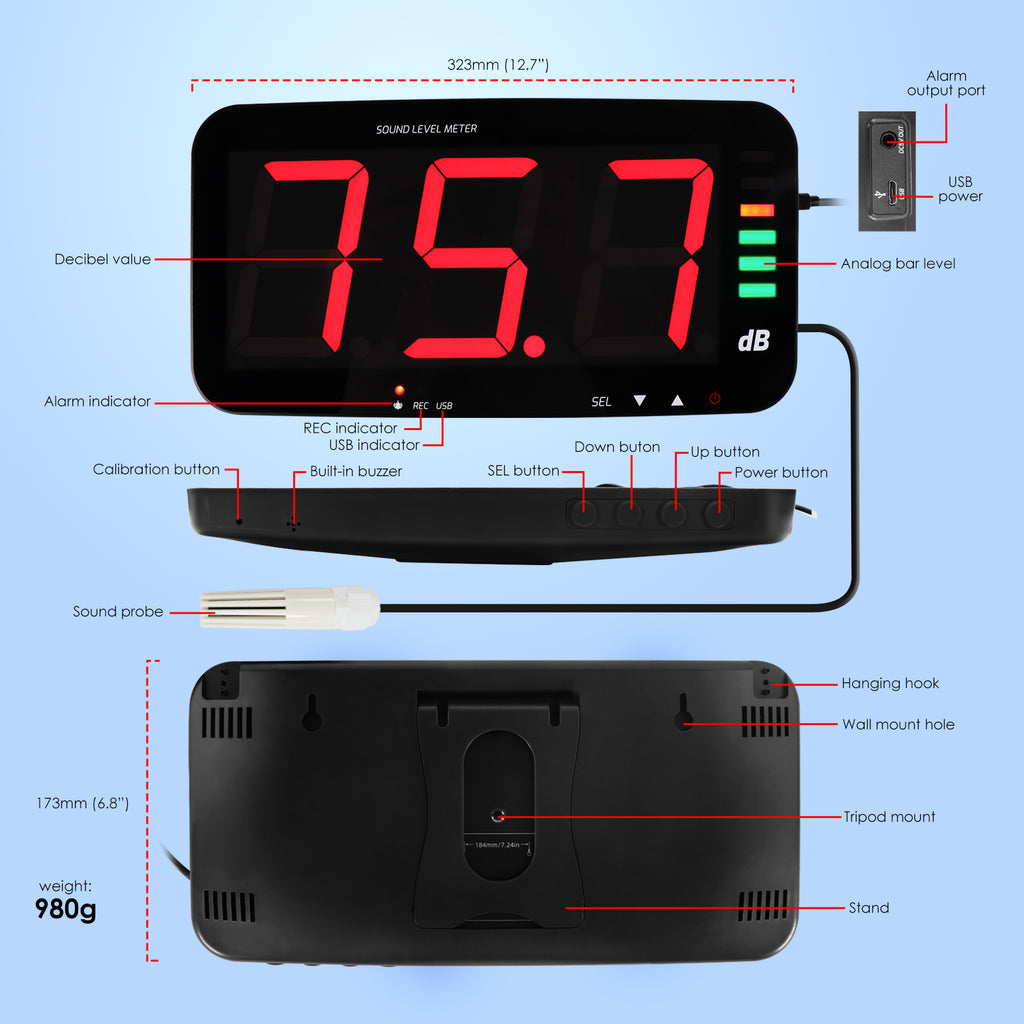

Features:

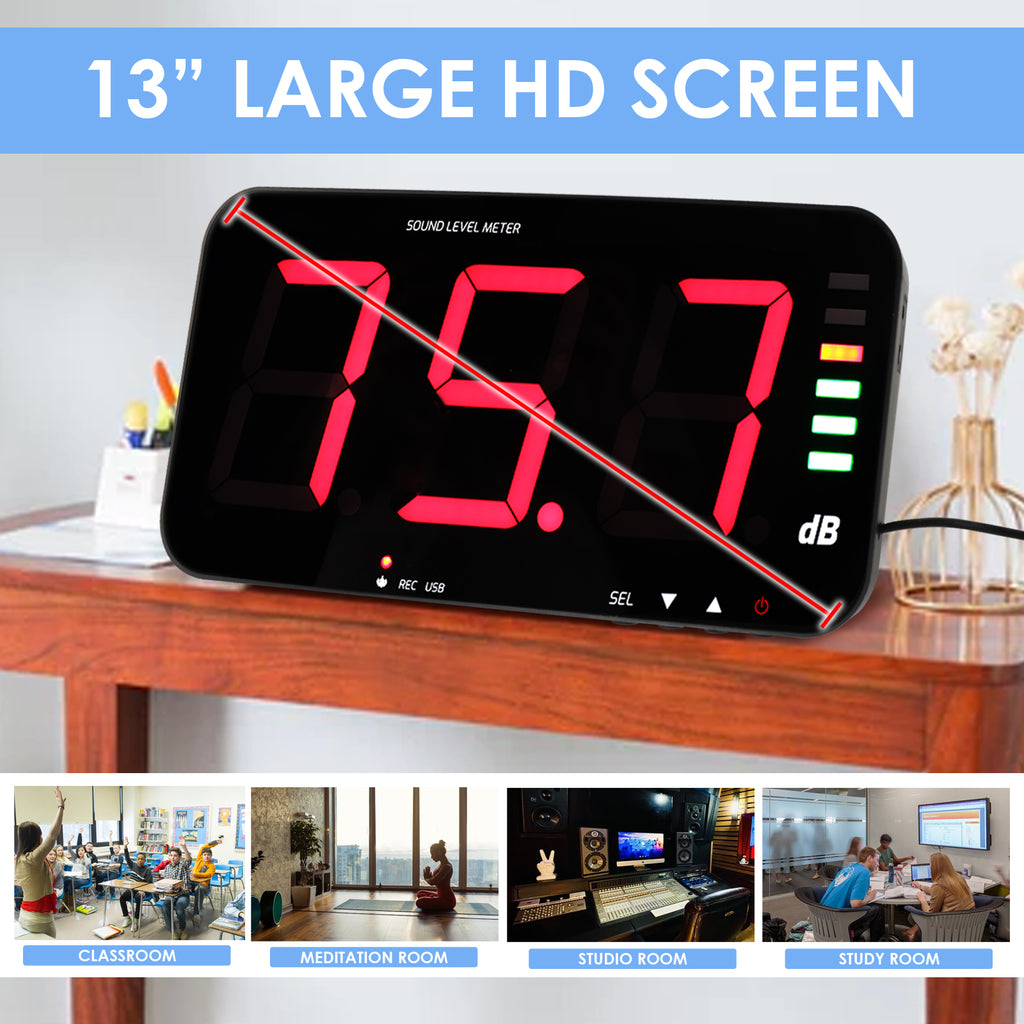

  • 13" HD wide-screen display
  • Wide measurement range with data logging
  • Adjustable alarm threshold

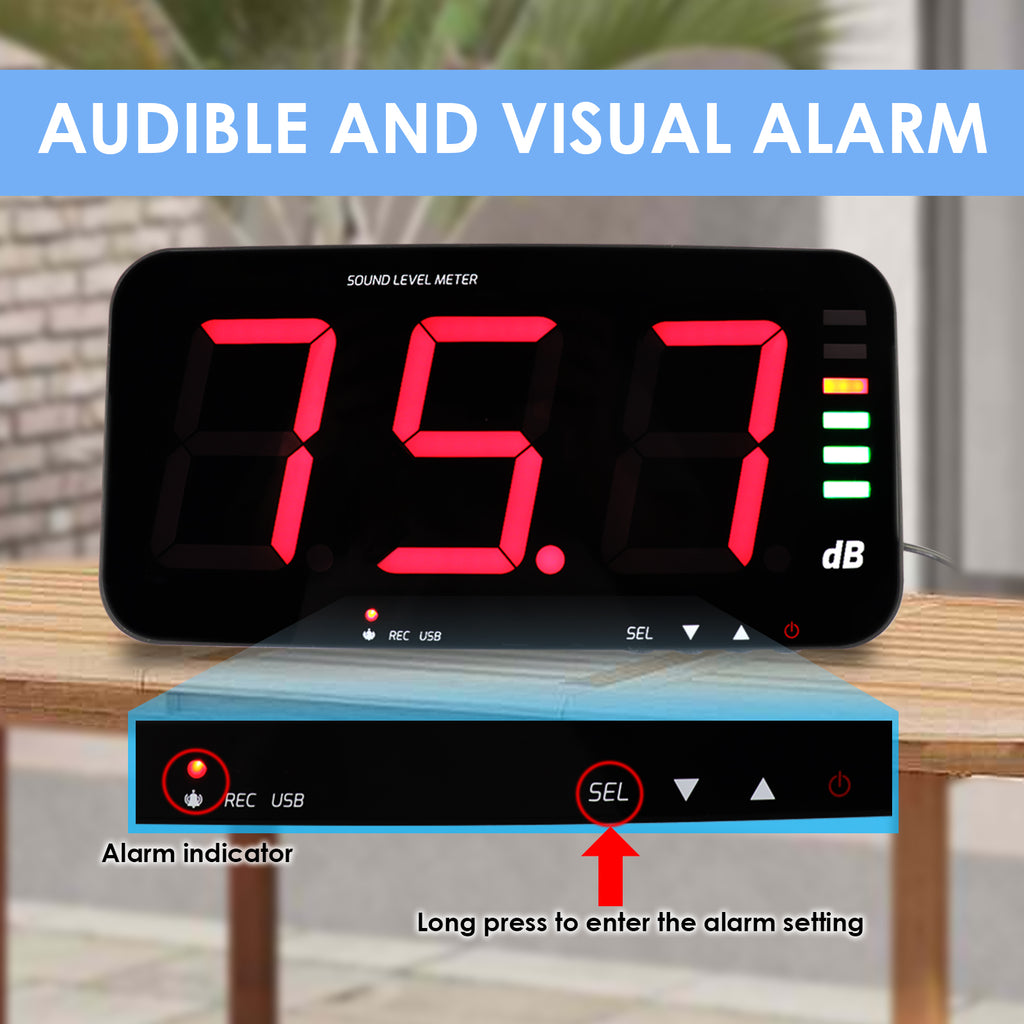

  • Sound and light alarm when over limit (built-in buzzer)
  • Adjustable alarm duration
  • With an external alarm output interface

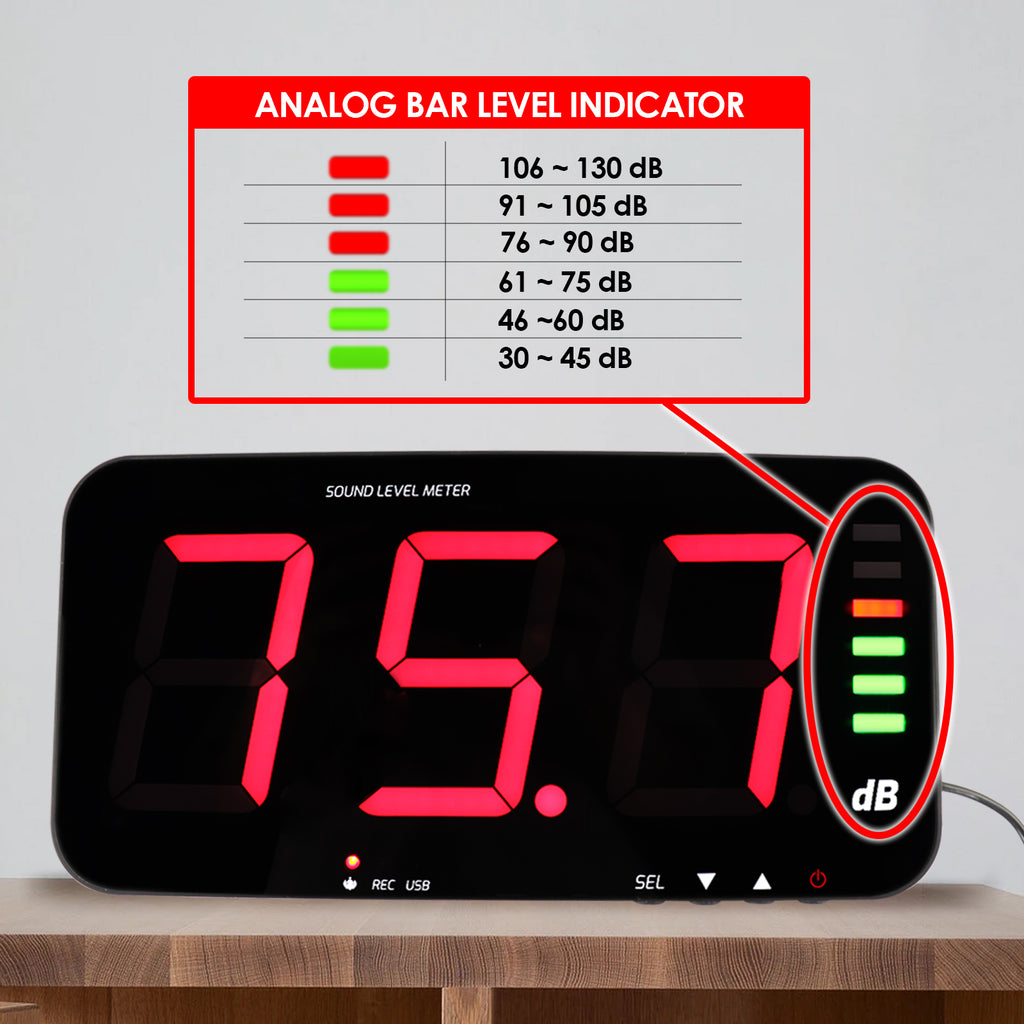

  • Six analog bar level indication
    • Six grid in red: 106~130dB
    • Five grid in red: 91~105dB
    • Four grid in red: 76~90dB
    • Three grid in green: 61~75dB
    • Two grid in green: 46~60dB
    • One grid in green: 30~45dB
  • Data logging every 2s and can be stored for one year

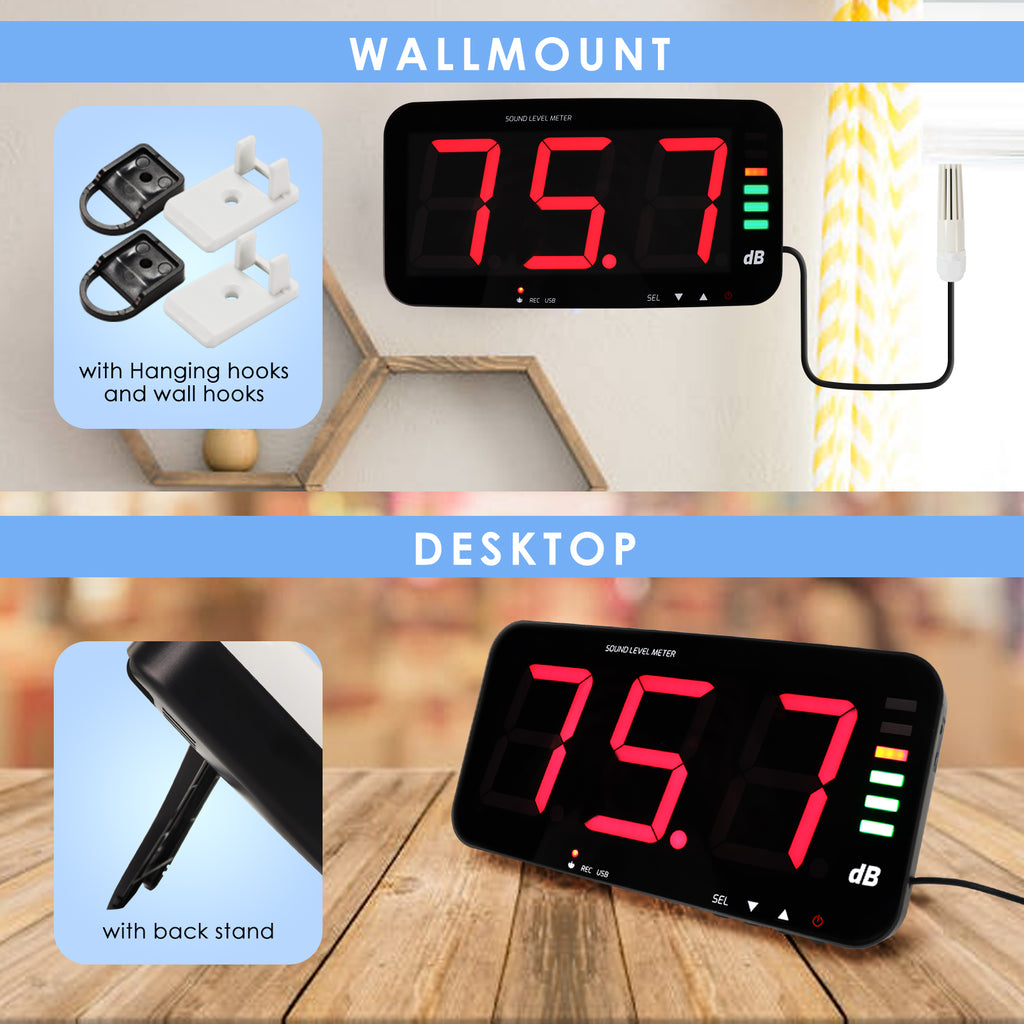

  • Wall mount / Hang / table top (with hidden bracket) / or attached to a tripod (note the tripod is not included in the set)

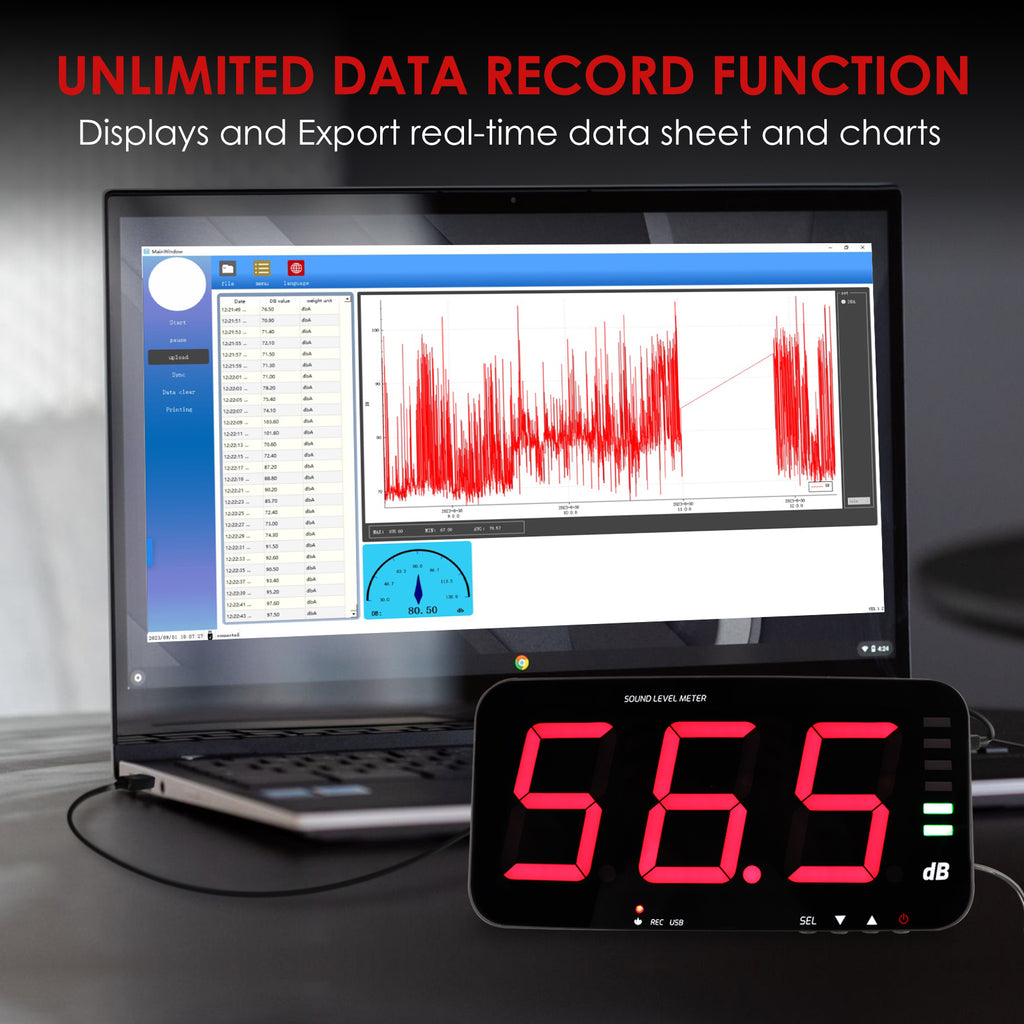

  • With data records download and real-time PC connection function through USB; export and print data sheet and charts (Note to buyer(s): PC software is suitable only for Win7, Win8, Win10, and Win 11 64-bit)
  • Factory calibrated


Specifications:

  • Measurement range: 30~130dB
  • Accuracy: ±1.5dB (sound pressure reference, 94dB@1KHz)
  • Resolution: 0.1dB (<10dB); 1dB (>100dB)
  • Frequency weighting: A weighting
  • Frequency response: 31.5Hz~8.5KHz
  • Sampling rate: 2 times/s
  • Time weighting: FAST, 0.5s

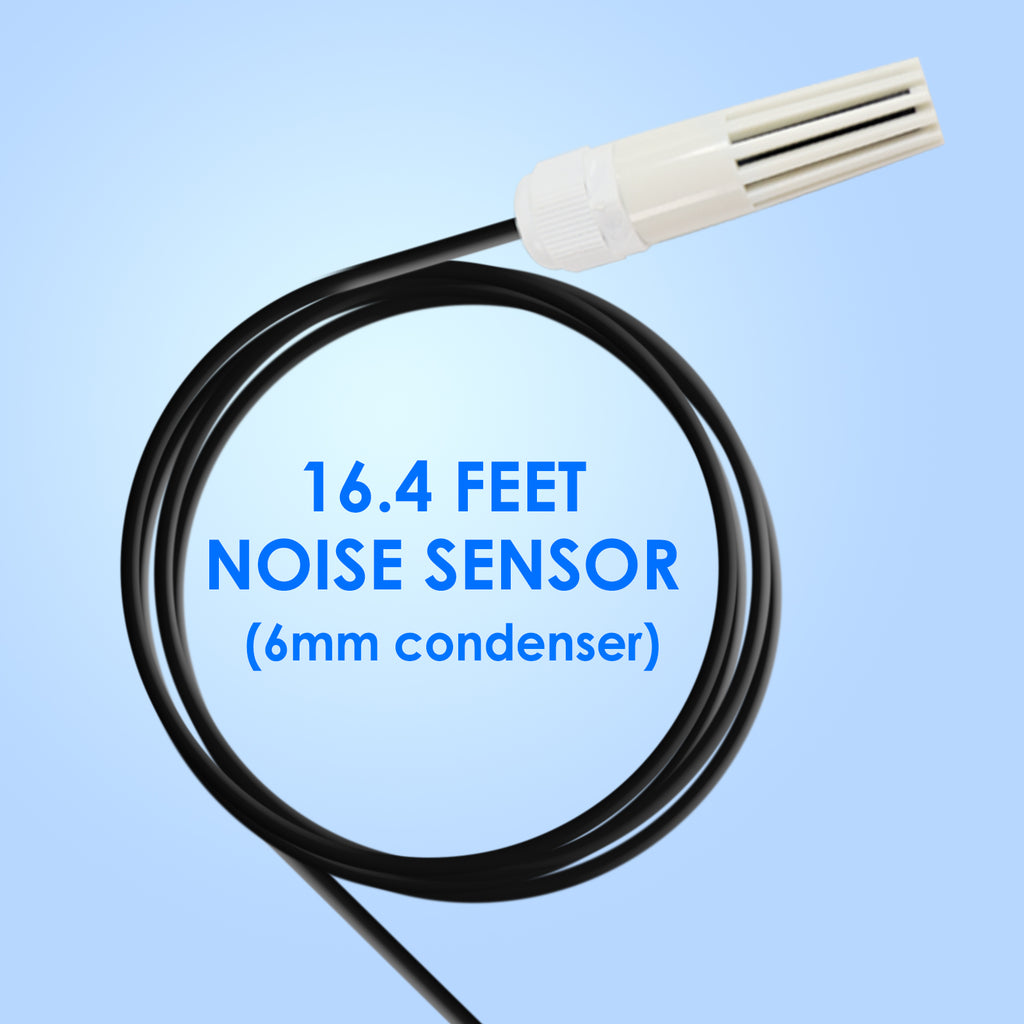

  • Sensor: 6mm condenser microphone sensor
  • Test probe: 5m long
  • Display: LED digital tube, single character 4" inches
  • Alarm output: 12V high level
  • Alarm alert: Sound and Light
  • Power supply: DC 5V / 1A

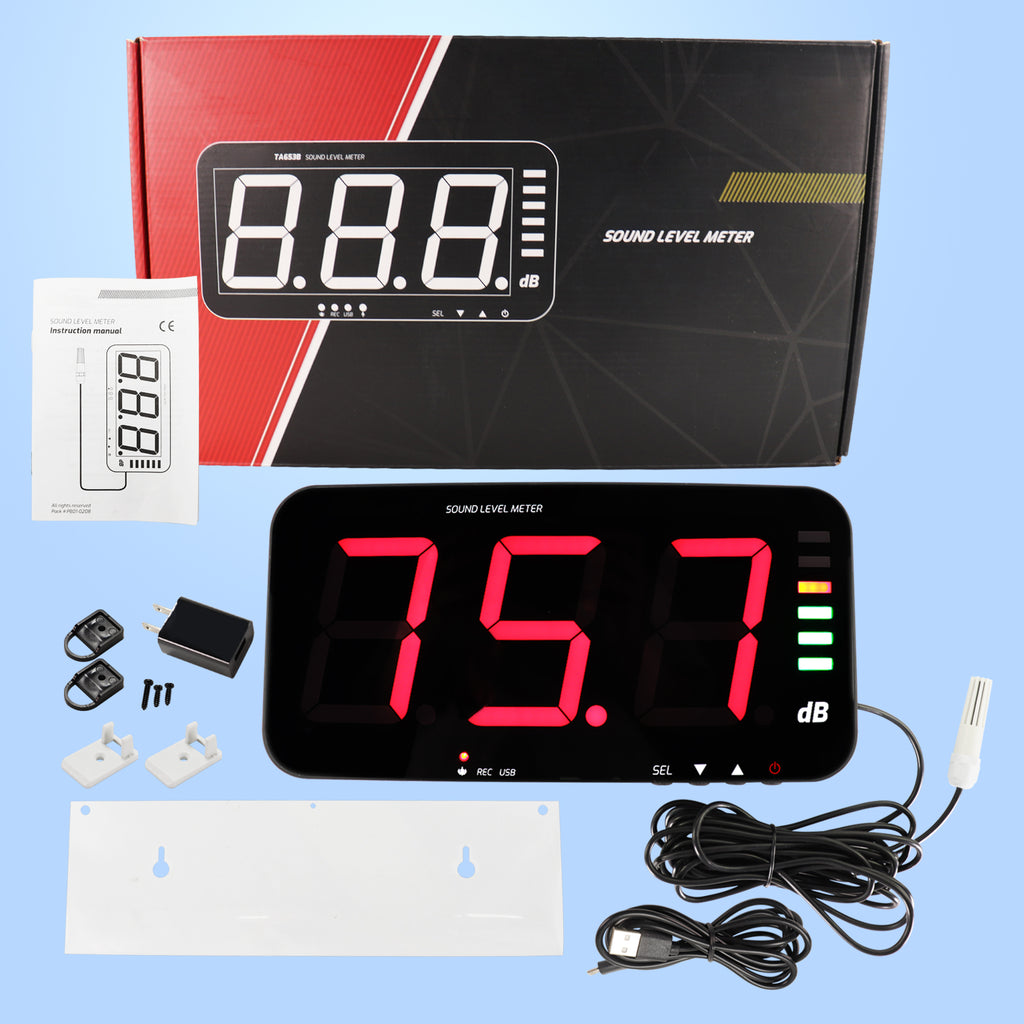

Set includes:

  • 1 x Sound Level Meter
  • 1 x USB power cable
  • 2 x Wall mount screw
  • 2 x Hanging hook
  • Instruction Manual
