TK444PLUS Digital Ultrasonic Thickness Gauge Meter Datalogger Record 1500 Data MAX/MIN/AVE High-Precision Measurement for Steel, Metal, Ceramics
In stock
TK444PLUS
Features:
Measure the thickness of materials with different sound velocities
Probe: 5Md10
Manual or automatic data storage
The display will change to red when the High and Low limits are exceeded ...
Features:
- Measure the thickness of materials with different sound velocities
- Probe: 5Md10
- Manual or automatic data storage
- The display will change to red when the High and Low limits are exceeded (beep when the alarm sound is enabled)
- Enabled or Disabled Automatic shutdown (can set after 5min, 10min, or 30min with no operation)
- Backlight selection (constant or high brightness)
- MAX/MIN/AVE reading display
- Battery strength indicator
- Data storage indicator
- Two measurement interface view
- Colored screen display with user-friendly interface
- Selectable measurement unit (mm/inches)
- Easy calibration with built-in 4mm block & coupling agent
- PC software for data download
Specifications:
- Measurement range: 1.0~300.0mm (steel)
- Data Storage: 1500 data sets
- Operation Frequency: 5MHz/2.5MHz
- Accuracy: ±(0.5%H+0.05)mm
- Resolution: 0.01mm(1.00~99.99mm)/0.1mm(100~300mm)
- Pipe Lower Limit: ⌀20x3mm(steel)
- Sound Speed Measurement: 1000~9999m/s
- Operating Temperature: 0~40°C (32~104°F)
- Power Supply: 1000mAh 3.7V LI Battery
- USB Charging: 5V 1A
- Dimension: 150.6 x 65.3 x 35mm
- Weight: 158gms

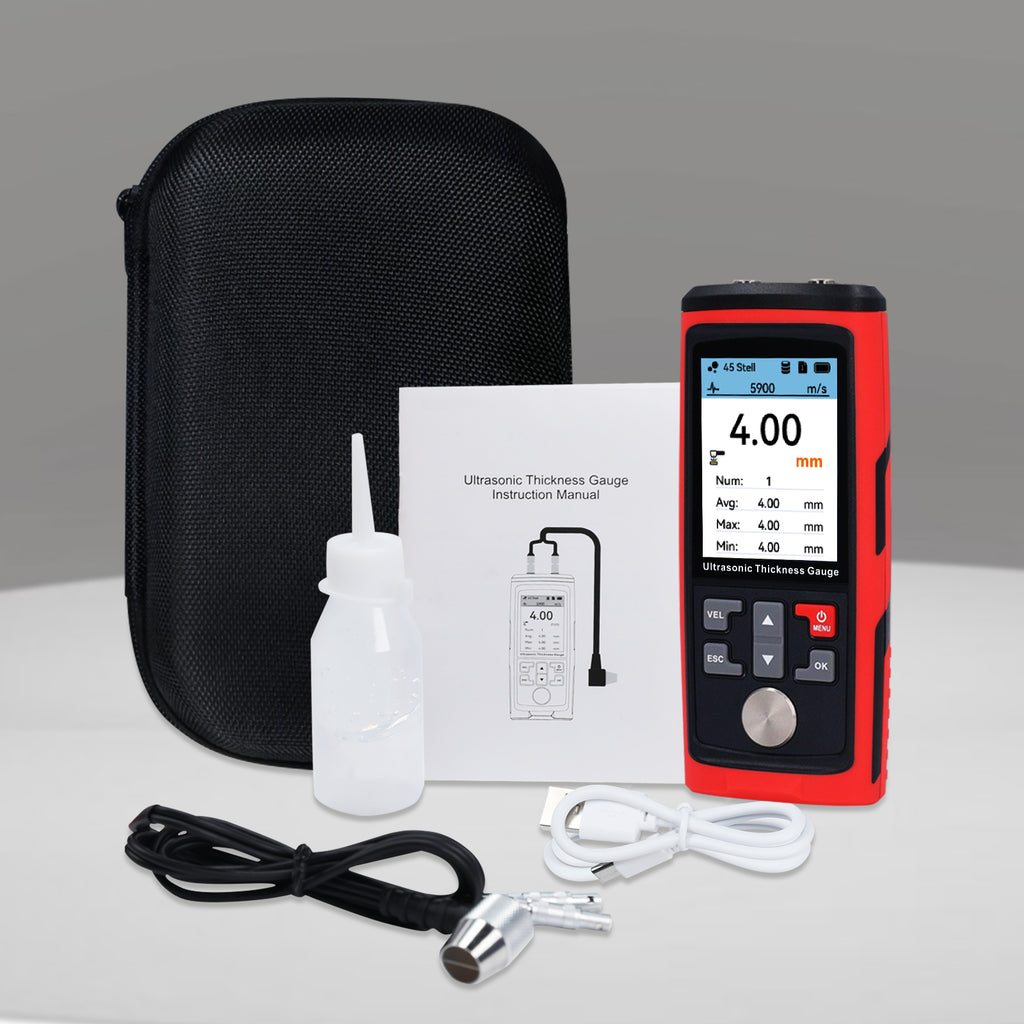

Set Includes:
- 1 x Ultrasonic Thickness Meter
- 1 x Sensor Probe
- 1 x Bottle of Coupling Agent
- 1 x USB Cable
- Carrying Case
- Instruction Manual
